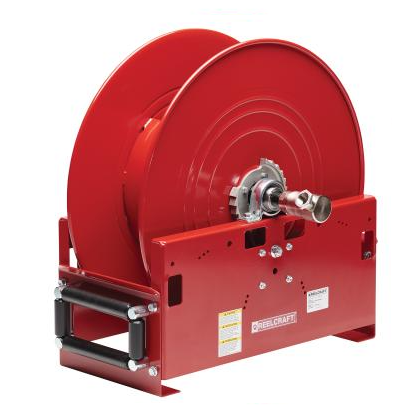

Thumbnail Filmstrip of G9400 OMPBW - 1" X 75' Ultimate Duty Vehicle Mount Hose Reel Images
Reelcraft's Series G9000 hose reels are designed to be compact and allow for longer lengths of larger diameter hose. The redesigned gooseneck can be removed from the reel for easier hose attachment. An external drive spring allows for convenient access to the spring components and improved servicing of the reel. The roller bearing inside of the pillow block produces a smoother spool rotation and easier operation.
- Hose I.D.: 1 inch
- Hose Included: No
- Hose Length: 75 ft
- Hose Outside Diameter: 1.480 inch
- Manufacturer: ReelCraft
- Maximum Temperature: 210 F
- Outlet: 1 inch NPT(F)
- Pressure Rating: 3000 psi
- Series: 9000
Substantial base frame – The full width frame has the greatest amount of mounting area and overall strength of reels within its class.
